MB-S1-6 Ultrasonic Cup Making Machine

Description

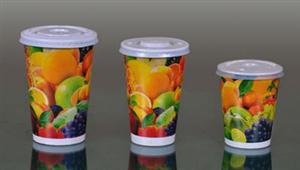

MB-S16 ultrasonic double PE coated paper cup machine is an automatic molding machine with multi-station. Main components include ultrasonic sealing system, speed reducer, motor, knurling set, bottom heating set and inverter. It is used to make paper cups, coffee cups, ice cream cups and other disposable cone type food containers through a series of successive processes, such as automatic paper feeding, sealing, oiling bottom punching, heating, knurling, hemming, etc. With MB-S16 ultrasonic paper cup making machine, you can produce both single and double sides PE coated paper cups only by exchanging the raw material.

Advantages
1. It is suitable for manufacturing paper cups whose height is more than 110 mm and size ranges from 12 oz to 22 oz.
2. Ultrasonic paper cup making machine has functions of photoelectric detection, failure warning and counting.
3. This double PE coated paper cup machine features easy operation, stable performance (step-less speed adjustment), low investment and high benefit.
4. Optically controlled non-contact switch, micro-controlled transducer, and fully automatic ultrasonic system are introduced.
5. Fan-shaped cup wall is sealed by ultrasonic system and paper cup bottom is sealed by hot air.
6. Easily changed molds are available to produce different sizes paper cups.
7. Ultrasonic paper cup making machine can be maintained easily with minimum cost.

Parameters
Paper Cup Size 12 to 22 (oz)
Production Speed 38 to 45 (pcs/min)
Paper Cup Top Diameter Min. 45 mm, Max. 104 mm
Paper Cup Bottom Diameter Min. 35 mm, Max. 75 mm
Paper Cup Height Min.110 mm, Max. 140 mm
Raw Material 180 to 380 (gsm), Single PE or Double PE Coated Paper
General Power 7 kW
Electricity 380 V 3 phases or 220 V 1 phase
Weight 1600 kg
Measurement 2.8 × 1.2 × 1.8 (m)

Maintenance
1. Please keep this double PE coated paper cup machine clean.
2. Regular oil lubrication for ultrasonic paper cup making machine is needed.

Package
Products are packaged by wooden cases and transported by sea.

Principle
MB-S16 ultrasonic paper cup making machine is developed on basis of MB-S12 double PE coated paper cup machine. In this type of paper cup machine, we add an ultrasonic system to seal the paper cup body. The ultrasonic system solves the problem that double sides PE coated paper can not be sealed by heater, because when a heater is applied on the outside surface, the PE film will be burnt and become yellow or blackish making the cups look ugly.
