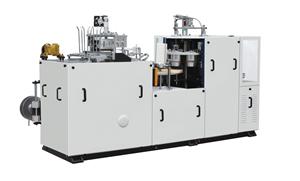

MB-S35 Ultrasonic Paper Bowl Making Machine

Description
MB-S35 ultrasonic double PE coated paper bowl machine is mainly applied to produce single or double side PE coated paper bowls which are used as soup bowls, instant noodle bowls, takeout bowls, ice cream bowls, and other large capacity food and beverage containers. This ultrasonic paper bowl machine is mainly composed of triangle iron or channel steel chain wheel, chain, connecting rod, cam, bearing, speed reducer, motor and automatic speed regulation inverter.

Features
1. MB-S35 double PE coated paper bowl machine features small size, stable performance, low investment and high benefit.
2. This machine can achieve stepless speed adjustment.
3. Optical non-contact switch is employed to achieve automatic control.
4. The ultrasonic paper bowl machine is able to feed, seal, punch, edge curl and knurl the paper automatically.
5. Paper bowls body side is sealed by heater, and bottom is sealed by hot air.
6. Mould of paper bowl could be changed to different sizes (height up to 125 mm) according to your needs.
7. We can manufacture ultrasonic paper bowl machines and moulds according to customers’ requirements.

Parameters of MB-S35 Double PE Coated Paper Bowl Machine
Paper Bowl Specification 20 to 50 (oz)
Paper Material 140 to 320 (gsm) Single/Double PE Coated Paper
Output Speed 35 to 40 (pcs/min)
Power Supply 380 V 50 Hz
Total Power 9 kW
Machine Weight 2500 kg
Overall Dimension 2800 × 1200 × 1600 (mm)
Air Supply 0.6mpa, 0.6 cbm/min

Package of Ultrasonic Paper Bowl Machine
Products are packaged by wooden cases and delivered by sea.

Maintenance
1. Please keep the unauthorized people away from the ultrasonic paper bowl machine in operation.
2. Please add engine oil onto moving parts of the equipment every day.
3. Lubricating grease should be used on the equipment regularly (usually every 15 days).
4. All screws and chains must be checked and fastened each 15 days.

Ruian Mingbo Machinery Co., Ltd. is a professional manufacturer of automatic paper cup making machines in China. In addition to paper cup forming machine, our company also offers paper bowl machine, paper bucket machine, paper plate machine, die cutting machine, cup lid machine, flexo printing machine, etc. Our ultrasonic paper bowl machines/double PE coated paper bowl machines are exported to Jordan, Algeria, Qatar, India, Indonesia, Taiwan, Libya, Russia, and so on.
