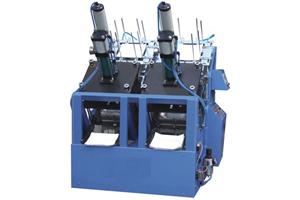

Middle Speed Paper Plate Making Machine

Description
ZDJ-400 middle speed paper plate making machine is our newly developed machine based on market demand. It produces plates by fully automatic paper absorbing and feeding, heating, forming and discharging. This equipment is widely used for making plates with different specifications and shapes. Paper or aluminium foil coated paper can be used as raw material. This machine is in huge demand for making paper plates, which are widely used in many fields.

Features
1. It has functions of thermostatic control and automatic counting.
2. ZDJ-400 paper plate machine is highly resistant to corrosion, which ensures its long service life.
3. ZDJ-400 middle speed paper plate making machine has two working stations in total.
4. Mould can be changed according to your plate specification.
5. The machine recombines air operated and mechanical principle. This humanized structural design ensures safe operation, stable performance, and convenient maintenance.
6. We can offer customization of moulds and paper plate machines according to your requirement.
7. This paper plate making machine employs high efficient pressure boost air cylinder, which makes the equipment efficient and environmental friendly.

Parameters
Paper Plate Specification 5 to 11 (inch) (Mould Exchangeable)
Paper Material 100 to 500 (gsm) Paper/Paperboard/PE Coated Paper
Production Speed 60 to 80 (pcs/min)
Power Supply 220V 50hz
Total Power 3 kW
Machine Weight 600 kg
Overall Dimension 1430 × 1600 × 1900 (mm)
Air Supply 0.8 mpa, 1.5 cbm/min

Package and Delivery
1. Wooden cases are applied to package products.
2. Paper plate machines are transported by sea.

Ruian Mingbo Machinery Co., Ltd. is a professional manufacturer of automatic paper plate machines in China. In addition to paper plate making machine, our company also offers paper bowl machine, paper bucket machine, paper cup machine, die cutting machine, cup lid machine, flexo printing machine, etc. Our PE coated paper cup machines are exported to Jordan, Algeria, Qatar, India, Indonesia, Taiwan, Libya, Russia, and so on.
