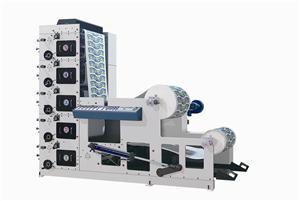

RB-650 Flexo Printing Machine

Description
RB-650 flexographic printer is an economical and environmental friendly printing machine for paper cups. Flexo printing machine employs water soluble ink. It can complete the whole process including paper feeding, printing, polishing, drying, laminating and rolling.

Application
Flexo printing machine is suitable for printing on single and double PE coated paper, PVC, OPP or other plastic products, such as corrugated boxes, flexible packaging (like flexible plastics), self adhesive labels, disposable cups and containers.

Features
1. Flexographic printer is equipped with automatic deviation correcting and corona equipment.
2. Customization service for flexo printing machines with different specifications (four to six colors) is available.
3. It employs ceramic anilox roller to deliver ink.
4. It can meet various printing requirement by changing printing and anilox roller.
5. Magnetic powder brake and clutch controller (or Mitsubishi automatic tension controller) are used for feeding and discharging.
6. Each printing unit has a group of infrared drying device.
7. When the flexo printing machine stops working, ink roller will separate itself from paper automatically and run slowly in case ink dries.
8. Main motor adopts imported frequency conversion and stepless speed regulation technology.
9. Flexographic printer mainly features stability, fast speed, efficiency, high precision and low consumption.

Configuration of RB-650 Flexo Printing Machine
1. Main Configuration: One Printing Roller and One Ceramic Anilox Roller for Each Color, Model 50 and 100magnetic Powder Brake, a Set of Japanese Mitsubishi Tension Controller, a Group of Infrared Drying Device for Each Color, Rubber Roll, Pneumatic Element and Main Motor
2. Electrical Configuration: Circuit Breaker, Temperature Controller, Hall Switch, AC Contactor, Frequency Convertor and Press Button
3. Optional Configuration: Deviation Correct System, Computer Screen Capture Device, Die Cutting Circular Knife, Computer Post The Version and UV Dryer

Parameters of RB-650 Flexo Printing Machine
Printing Speed 50 m/min
Printing Color 4 to 6 Colors
Max. Width of Web 850 mm
Max. Unwinding Diameter 1300 mm
Total Power 13 kW
Printing Precision ± 0.15 mm
Max. Printing Width 850mm
Printing Perimeter 160 mm to 370 mm
Max. Winding Diameter 1300 mm

Ruian Mingbo Machinery Co., Ltd. is a professional manufacturer of flexographic printers in China. In addition to flexo printing machine, our company also offers paper cup making machine, paper bowl machine, paper bucket machine, paper plate machine, die cutting machine, cup lid machine, etc. Our PE coated paper cup machines are exported to Jordan, Algeria, Qatar, India, Indonesia, Taiwan, Libya, Russia, and so on.
