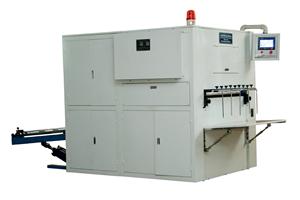

J-DC750 Automatic Platen Die Cutting Machine

Description
J-DC750 automatic platen die cutting machine is mainly composed of worm gear, PLC controller, and touch screen. The roll paper (blank or printed) is pulled by stepping motor and transported to flat pressing cutting device. This automatic die cutting machine is suitable for die cutting envelop, medicine box, paper cup, paper bowl and various paper-plastic products.

Advantages
1. J-DC750 automatic platen die cutting machine features high efficient and energy saving.
2. Pneumatic clutch is fast and reliable, which ensures low energy consumption and high safety to operate the machine.
3. Wooden cutting die in platen die cutting machine is easy and cheap to exchange.
4. Feeding capacity can be set on the touch screen, which is convenient and accurate.

Parameters of J-DC750 Automatic Platen Die Cutting Machine
Model J-DC750
Cutting Precision ± 0.25 mm
Max. Cutting Speed 150 Strokes/min
Max. Cutting Pressure 15 T (1 T = 1000 kg)
Max. Cutting Paper Size 750 × 290 (mm)
Max. Unreeling Diameter 1200 mm
Paper Size Applicable 80 to 800 (gsm)
Total Motor Power 4.5 kW
Machine Overall Dimension 3200 × 1500 × 1800 (mm)
Weight of Automatic Die Cutting Machine 1800 kg

Package and Delivery
Products are packaged by wooden cases and delivered by sea.
